Sign-in providers

Route/admin/dashboard/settings

Legacy screen

This surface predates the Hive redesign; it is scheduled under #5272.

System settings holds the installation's sign-in providers — the OAuth and OpenID Connect identity providers people can use on the sign-in page and link on Linked accounts. Each provider can be configured in the database, from this screen, or in .env; a value stored here overrides the environment, and a blank field falls back to it. Sign in to the admin console and choose System settings in the sidebar.

Route/admin/dashboard/settings

The list shows only providers that are configured — anything stored in the database for them, or a row that once existed. A provider set up purely in .env does not appear until you add it.

The providers

Provider	Id	Required to enable	Extra settings
GitHub	github	client ID, client secret	OAuth base URL, API base URL (GitHub Enterprise Server)
GitLab	gitlab	client ID, client secret	Base URL (self-hosted GitLab)
Microsoft	azure	client ID, client secret	Tenant (common allows any), Authority base URL
Google	google	client ID, client secret	Workspace domain — restrict sign-in to one domain
Okta	okta	client ID, client secret, issuer	Issuer
AWS (Cognito)	aws	client ID, client secret, issuer	Issuer (the user-pool issuer)
Keycloak	keycloak	client ID, client secret, issuer	Issuer (the realm issuer)
OIDC	oidc	client ID, client secret, issuer	Issuer, Display name, Scopes
Auth0	auth0	client ID, client secret, issuer	Issuer
LINE	line	client ID, client secret	—
VK	vk	client ID, client secret	—
WeChat	wechat	client ID, client secret	—

OIDC is any conformant OpenID provider (Authentik, PingFederate, ZITADEL and others); one generic OIDC provider is supported per installation.

Register the OAuth application

Each provider needs an OAuth (or OIDC) application registered on its side. Its callback or redirect URI is:

<BETTER_AUTH_URL>/api/auth/oauth2/callback/<id>

where <BETTER_AUTH_URL> is the public URL of the Apiome web app and <id> is the provider's id from the table — for example https://apiome.example.com/api/auth/oauth2/callback/github. Copy the application's client ID and client secret; issuer-based providers also give you an issuer URL, such as https://acme.okta.com/oauth2/default.

Settings on the provider's side

Apiome requests the scopes it needs itself and trusts an email address only when the provider says it is verified — a missing claim counts as unverified. A few providers need more than the callback URI:

Provider	Where to register	What else to set
GitHub	Settings → Developer settings → OAuth Apps → New OAuth App (or the organization's settings)	Nothing — copy the client secret straight away; GitHub shows it once
GitLab	Settings → Applications → Add new application (user, group or instance)	Tick Confidential and the read_user scope. For a self-managed instance, set Base URL
Microsoft	Entra admin center: Identity → Applications → App registrations → New registration, platform Web	Copy the secret's Value, not its ID. Add the xms_edov optional claim (Token configuration → ID token) — without it every Entra address counts as unverified and people must verify their email instead of joining their tenant. Single-tenant apps set Tenant
Google	Cloud console: APIs & Services → Credentials → OAuth client ID, type Web application	Configure the consent screen first (Internal for one Workspace). Workspace domain rejects any account outside that domain — the check is on the returned token, not just the sign-in page
Okta	Applications → Create App Integration → OIDC → Web Application	Assign who may sign in. Issuer: https://<okta-domain>/oauth2/default, or /oauth2/<server-id> for a custom authorization server
AWS (Cognito)	User pool: App integration → App clients, a confidential client with the authorization-code grant	Configure a Cognito domain for the Hosted UI. Issuer: https://cognito-idp.<region>.amazonaws.com/<user-pool-id>
Keycloak	Realm: Clients → Create client, OpenID Connect with client authentication on	Map email and email verified onto the ID token. Issuer: https://<host>/realms/<realm>
OIDC	A confidential client with the authorization-code grant	The issuer must serve <issuer>/.well-known/openid-configuration and emit email and email_verified
Auth0	Applications → Create Application → Regular Web Applications	Issuer: https://<tenant>.auth0.com, or your custom domain

The full per-provider guide — including LINE, VK and WeChat, the environment variable matrix, boot validation and secret encryption — is apiome-ui/docs/AUTH_PROVIDER_SETUP.md in the repository.

Add a provider

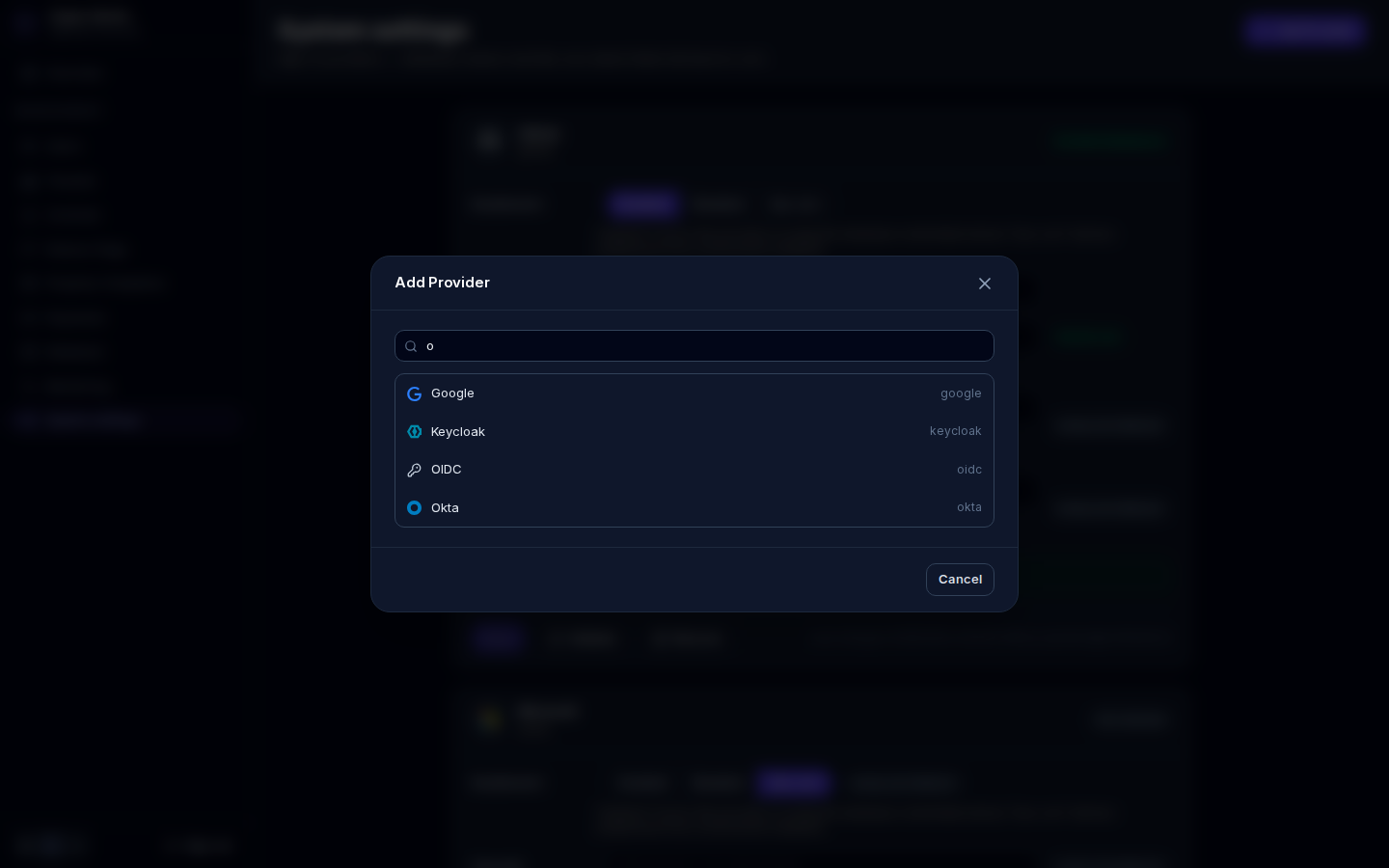

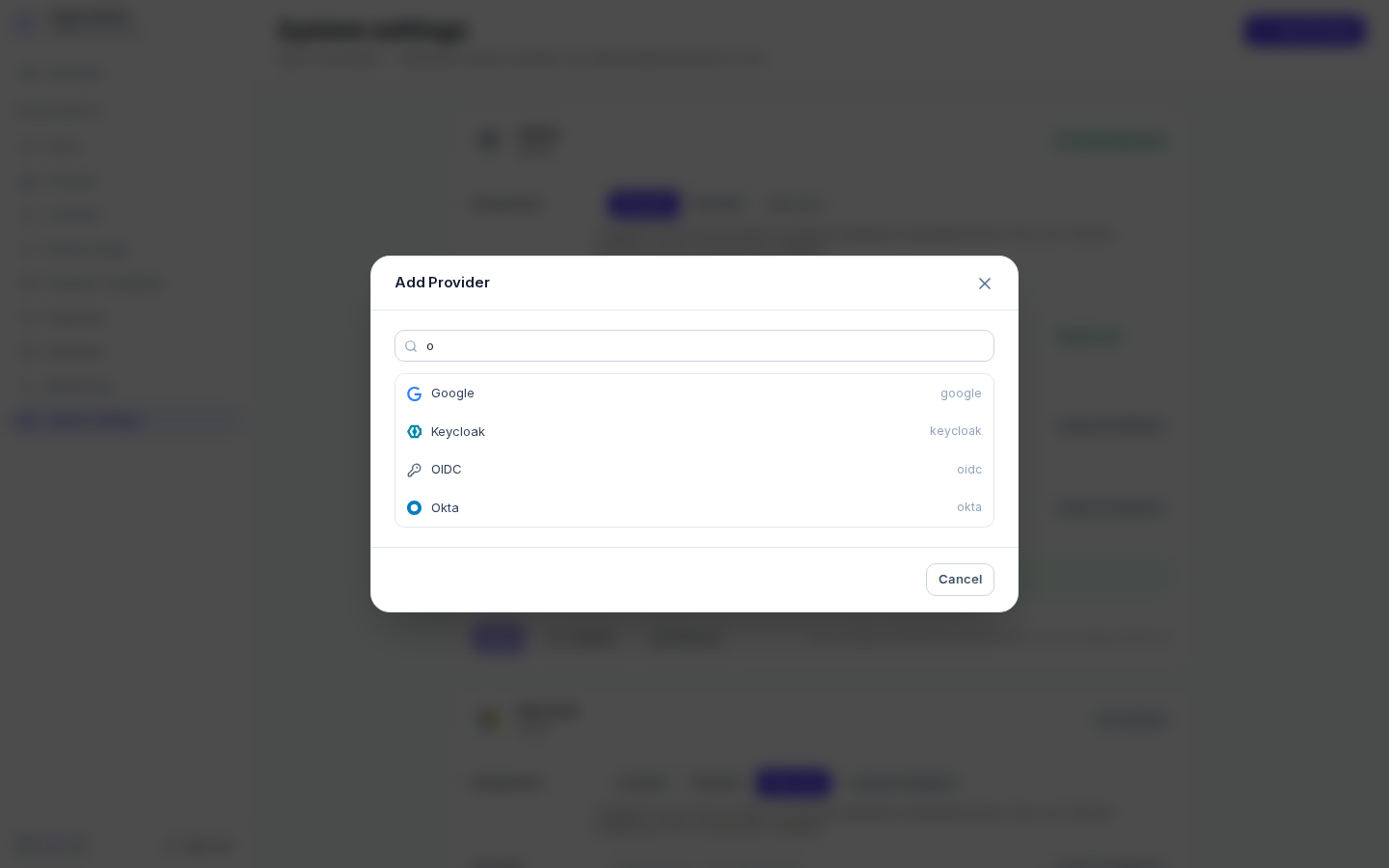

1. Click “Add Provider” at the top right.

2. Search or scroll the list and click the provider — for example Okta.



   Route/admin/dashboard/settings

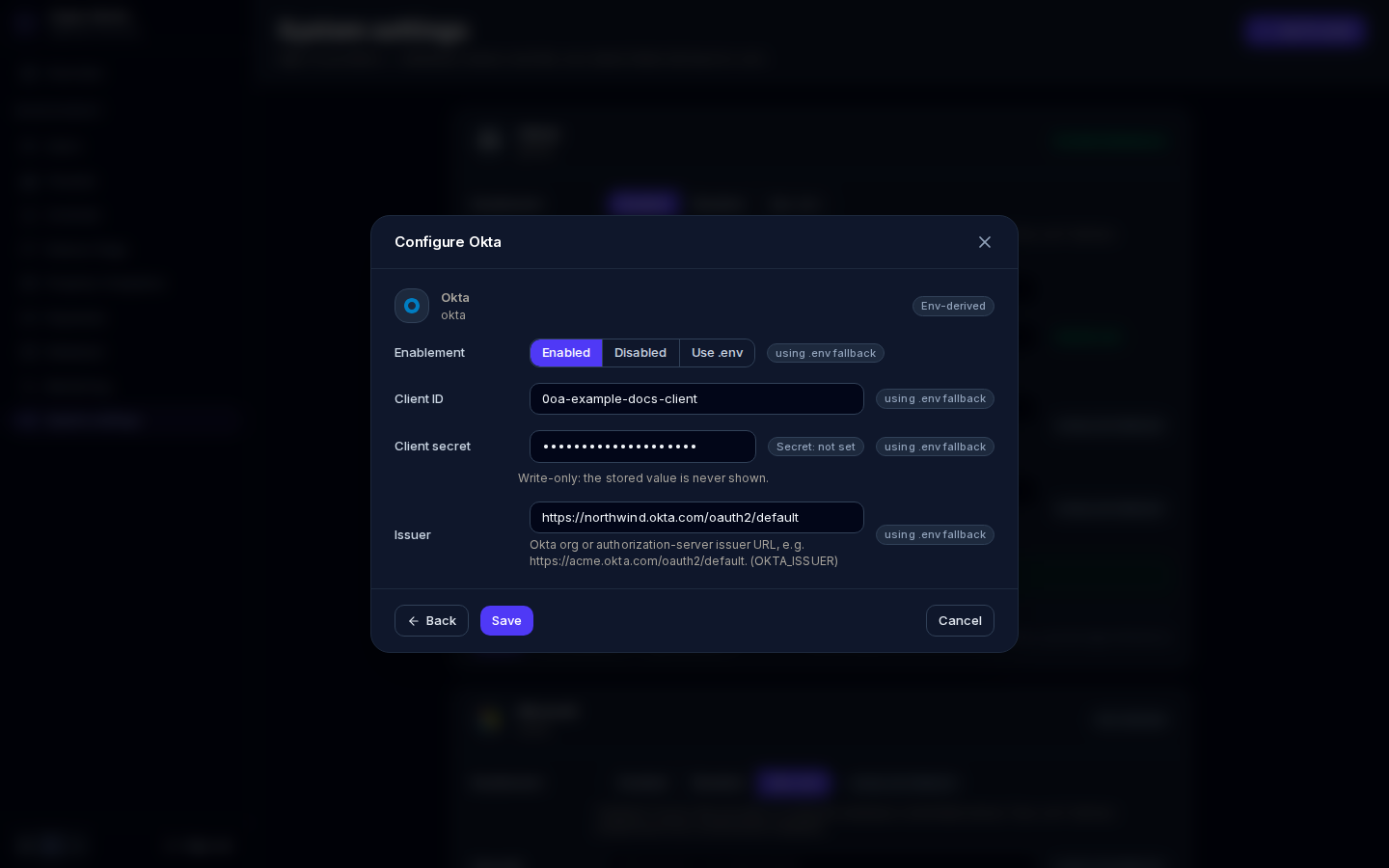

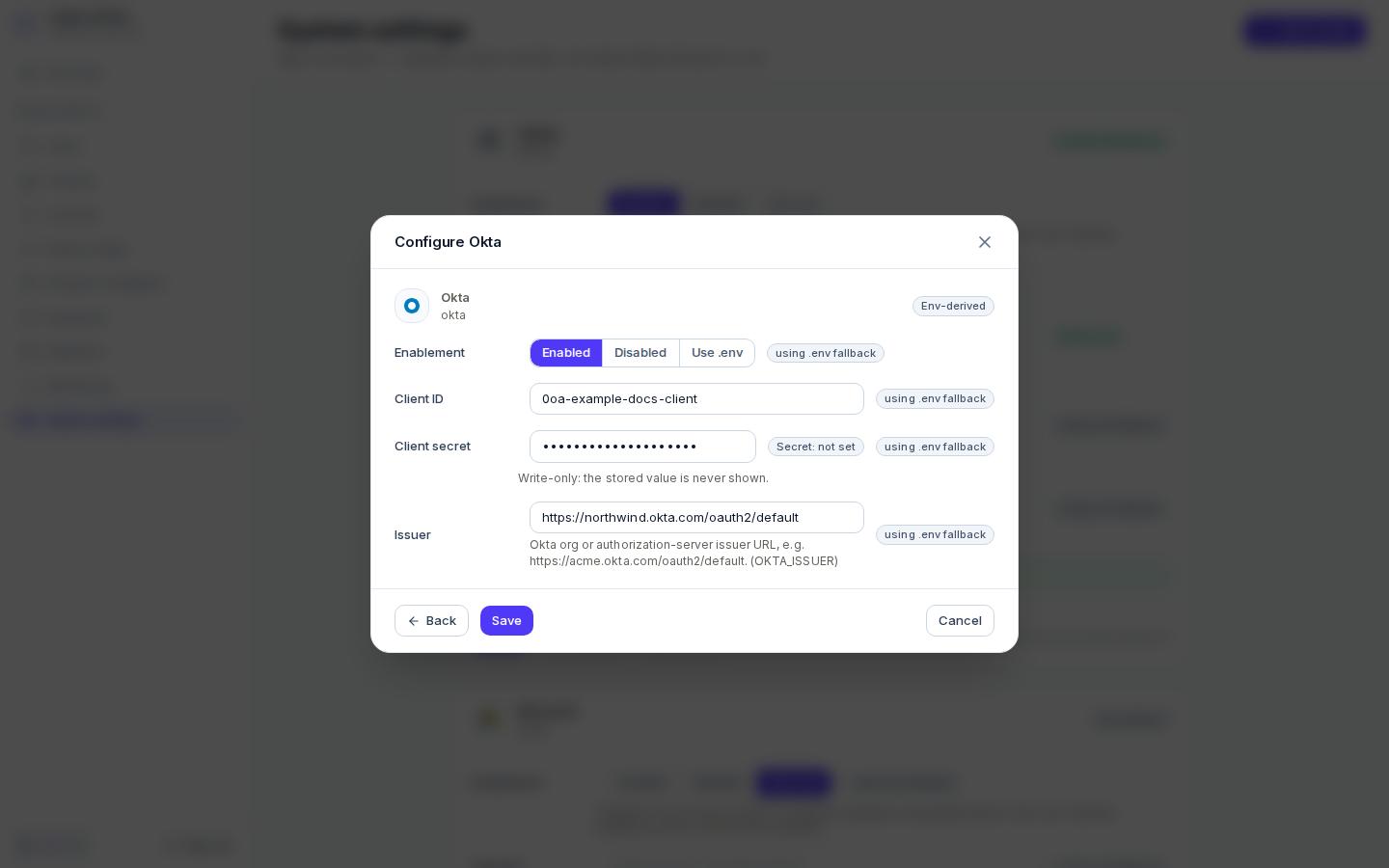

3. In Configure Okta, choose the Enablement:

   • Enabled — turn the provider on, using the credentials stored here;
   • Disabled — turn it off, whatever .env says;
   • Use .env — leave it to the environment variables.

4. Enter the Client ID, the Client secret and any extra settings, such as the Issuer. Leave a field blank to fall back to .env.

5. Click “Save”. The provider's card appears in the list.

Route/admin/dashboard/settings

Back returns to the list of providers; Cancel closes the dialog without saving.

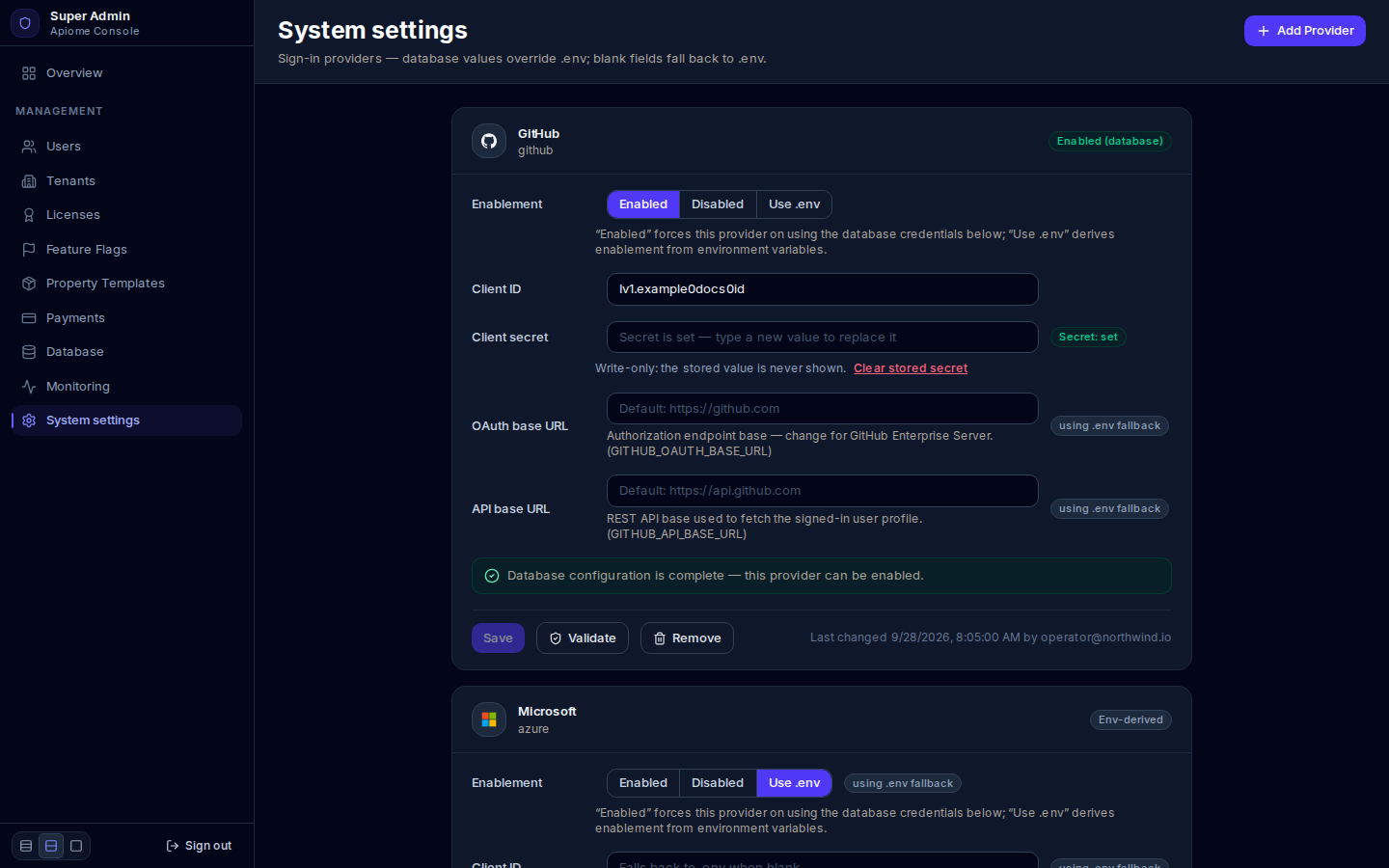

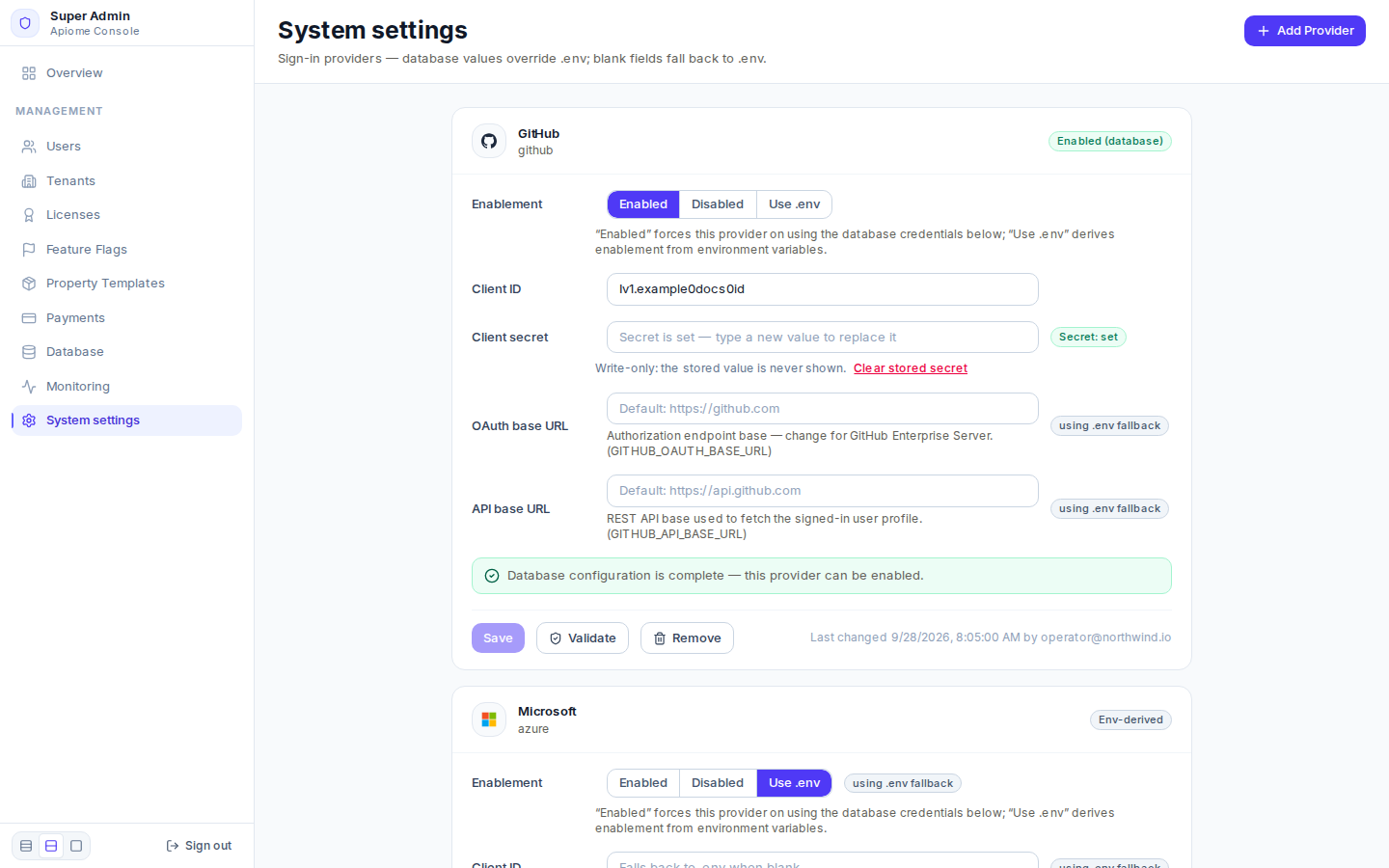

Edit a provider

Each card carries the same fields. Its chip says how the provider is enabled now — Enabled (database), Disabled (database) or Env-derived — and every field that has no stored value shows using .env fallback.

• Change a field and click “Save”. Only the fields you changed are sent. A Saved note confirms it, and the footer reads Last changed … by ….
• The client secret is write-only. The card shows only Secret: set or Secret: not set — never the value. Type a new value to replace it, or click “Clear stored secret” to remove it on the next save (the provider then uses .env); Undo cancels that.
• Choosing “Enabled” needs every required field stored here. Values in .env do not count. If one is missing, saving is refused and the card lists what to fill in.

Changes reach the sign-in page on the next sign-in, after the configuration cache expires — within 30 seconds by default (AUTH_PROVIDER_CONFIG_CACHE_TTL_MS, 5–60 seconds). No restart is needed.

Validate a provider

Click “Validate” to check whether the stored configuration is complete:

• Database configuration is complete — this provider can be enabled.
• Not ready to enable — missing: … — save the listed fields on the card first.

For OIDC, Validate also fetches the issuer's discovery document (<issuer>/.well-known/openid-configuration) and reports the error if it cannot be read, so a wrong issuer fails here rather than on the sign-in page.

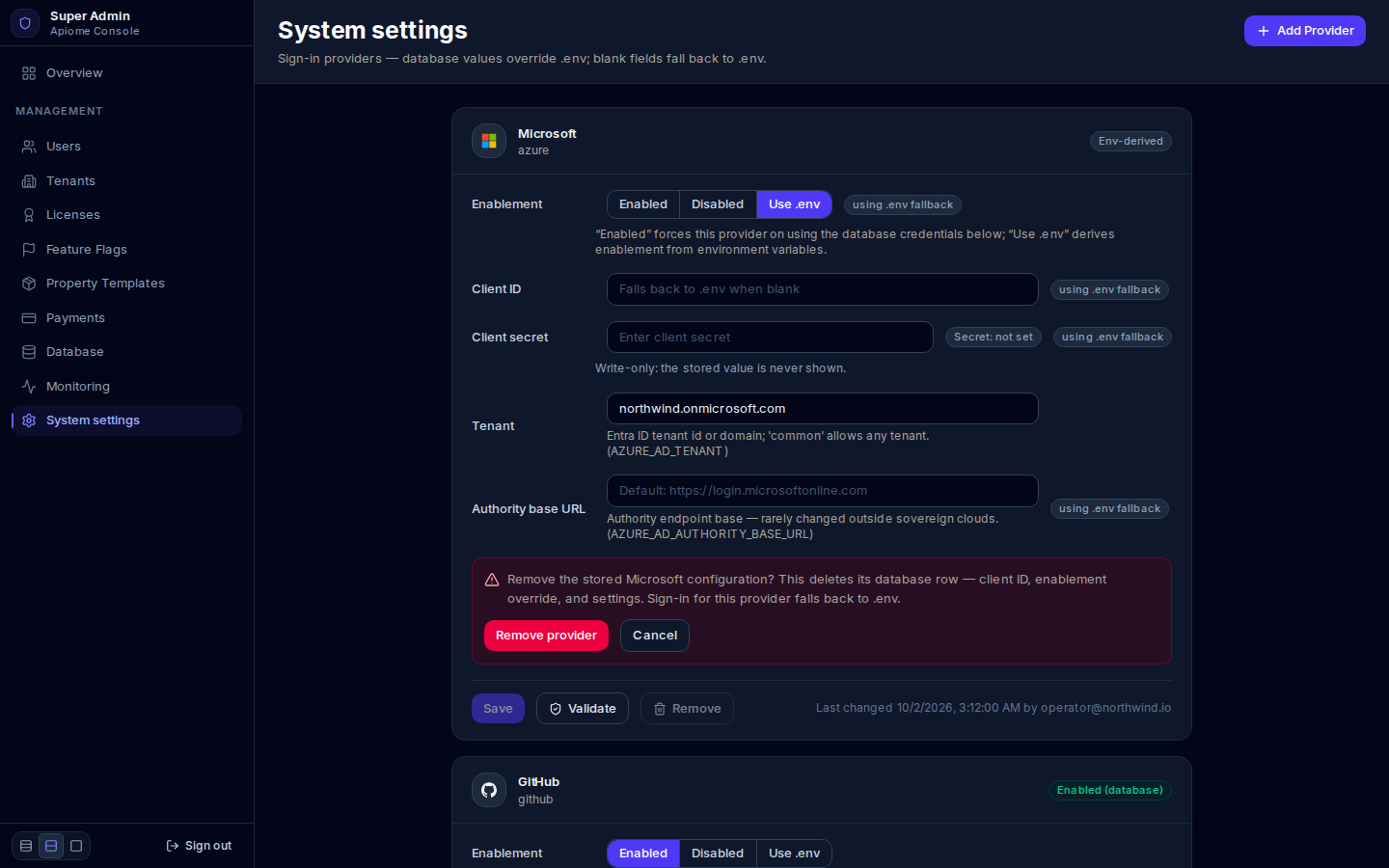

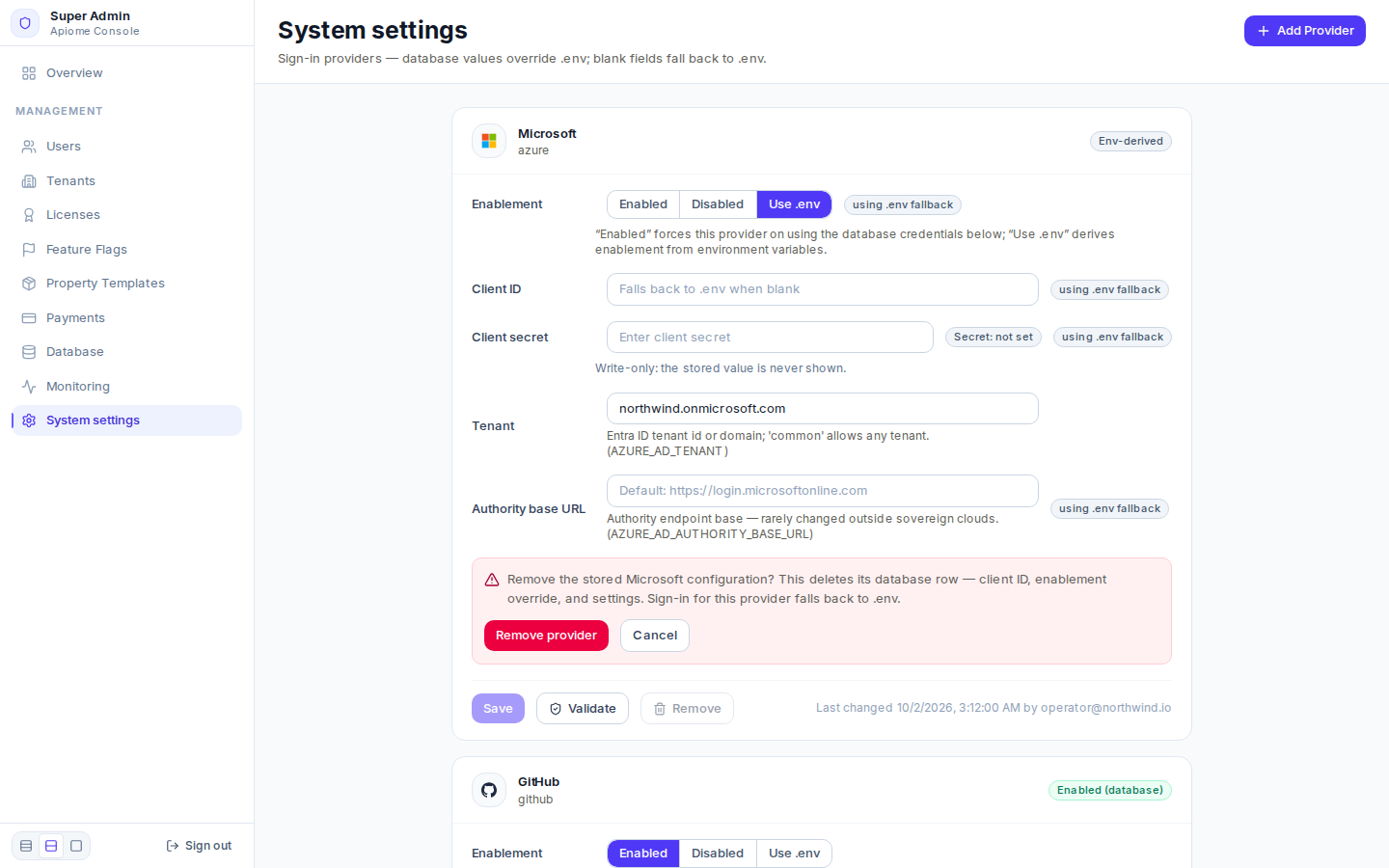

Remove a provider

Click “Remove” and then “Remove provider” to confirm. This deletes the provider's stored row — client ID, stored secret, enablement override and settings — and sign-in for the provider falls back to .env. A removed secret cannot be recovered. The provider then appears in Add Provider again.

Route/admin/dashboard/settings

Configure in .env instead

Every field has an environment variable in apiome-ui/.env — the console shows the variable under each extra setting. The client credentials are:

Provider	Client ID	Client secret
GitHub	GITHUB_ID	GITHUB_SECRET
GitLab	GITLAB_CLIENT_ID	GITLAB_CLIENT_SECRET
Microsoft	AZURE_AD_CLIENT_ID	AZURE_AD_CLIENT_SECRET
Google	GOOGLE_CLIENT_ID	GOOGLE_CLIENT_SECRET
Okta	OKTA_CLIENT_ID	OKTA_CLIENT_SECRET
AWS (Cognito)	COGNITO_CLIENT_ID	COGNITO_CLIENT_SECRET
Keycloak	KEYCLOAK_CLIENT_ID	KEYCLOAK_CLIENT_SECRET
OIDC	OIDC_CLIENT_ID	OIDC_CLIENT_SECRET
Auth0	AUTH0_CLIENT_ID	AUTH0_CLIENT_SECRET
LINE	LINE_CLIENT_ID	LINE_CLIENT_SECRET
VK	VK_CLIENT_ID	VK_CLIENT_SECRET
WeChat	WECHAT_CLIENT_ID	WECHAT_CLIENT_SECRET

apiome-ui/.env.example lists them all with their extra settings — see Operating Apiome.

With the API

The console calls the REST API's super-admin endpoints:

• GET /v1/admin/auth-providers — every provider's configuration, with secrets masked;
• PUT /v1/admin/auth-providers/{provider_id} — update the fields sent;
• DELETE /v1/admin/auth-providers/{provider_id} — remove the stored row.

See the API reference. There is no CLI command for sign-in providers.
